4 Patch Quilt Block Unit

Skill level: Beginner

Four patch units are one of the easiest blocks to make, and tradition has it that this was usually the first block taught to children learning to sew in previous centuries.  If you’re new to quilting this is a good first block.  Below are some images that depict the overall layout.

Typically, a 4-patch has two light and two dark units, although you can play with the values to get interesting effects.

Image of Four Patch Unit
Image of Four Patch Unit (Exploded)

Four Patch Unit (Exploded)

A lot of blocks use four-patches as part of the construction, so this is a great skill to have when learning to quilt. Below are a few blocks where you can see a 4-patch in action.

Autumn Tints Quilt Block

5440 or Fight Quilt Block

The Checkerboard Quilt Block

The Four patch is based on a 2×2 grid as shown in the example blocks above. Most units are formed by attaching two squares together, then attaching another set of two squares.

However, there is a more efficient way to make four-patch blocks and that is to use strip piecing. In Strip Piecing, you sew two long strips of fabric together, then sub cut those strips into the correct size to form your two-square units.


If you are careful to press your seams in opposite directions, you get a nice little nesting effect where the seams meet up. As you assemble the pieces together to sew them you can actually feel where the seams nest.

Alternate Grid 4-Patch

It is also possible to construct a 4 patch unit based on a diagonal grid, like below:

Image of Quarter Square Triangles

Quarter Square Triangles

In this case, you sew together the two triangular units on each side of a diagonal line through the grid, then sew the two sides together. The seams in the middle still nest like they do in a regular 4-patch.

More elaborate 4-Patches

Any block where you are able to visually cut it in half horizontally and vertically into a 2×2 grid is still basically a 4-patch. Sometimes, you might have to examine the block before you see it.  Below are a few examples:

Image of the Wyoming Valley Quilt Block
Image of Broken Dishes Quilt Block
Broken Dishes Quilt Block
Image of Whirlwind Quilt Block

How to make a 4-Patch – Traditional Method

  1. Use the cutting chart below to determine size needed, and cut 4 squares. (Traditionally 2 light squares and 2 dark squares.)
  2. Using a 1/4″ seam, sew a light square to a dark square, right sides together, making sure raw edges align.
  3. Open the sewn pieces of fabric and gently press so that the seam is pressed towards the darker fabric.
  4. Repeat steps 2 & 3 with other two squares.
  5. Sew the resulting 2-patch units together with a 1/4″ seam, making sure light and dark fabrics are facing each other and that raw edges are aligned.
  6. Press seam to one side.

Rotary Cutting Chart for 4-Patch Units

22.5″3.5″4.5″5.5″6.5″ 7.5″8″

Collapse (or “Twirl” open) those seams!

This is a matter of personal choice, but I prefer to do this “extra” step when making 4-patches.  It will make the unit lay much flatter, which will be much appreciated when it’s time to actually quilt your quilt.Here’s how:

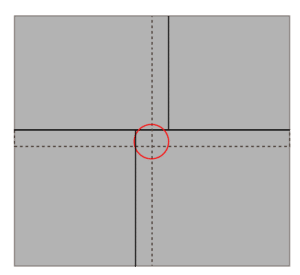

Turn your patchwork over to the side with all the seams. If you have pressed correctly, the seams should look like this:

Lightly twist the seams open in the seam allowance. The collapsed seams will form a mini 4-patch on the back side of the unit!

Make those four-patches faster!

A speedier way to make batches of 4-patches is to use the “strip set” technique.  Instead of cutting individual squares for your 4-patch, cut light and dark strips in the width required for the individual patches.  For example, if you needed a 4″ finished 4-patch, then you would cut 2.5″ strips.  Sew together a light and dark strip using a 1/4″ seam along the long edge of the strips. Press towards the dark side.  Square off the ends of the strip, then sub-cut the strip into pieces the width of your original strips.  In our current example, you would subcut them to 2.5″.  Finally, sew the two 2-patch units together to make your 4-patch.

Coloring Sheets

Click image to download coloring sheets
